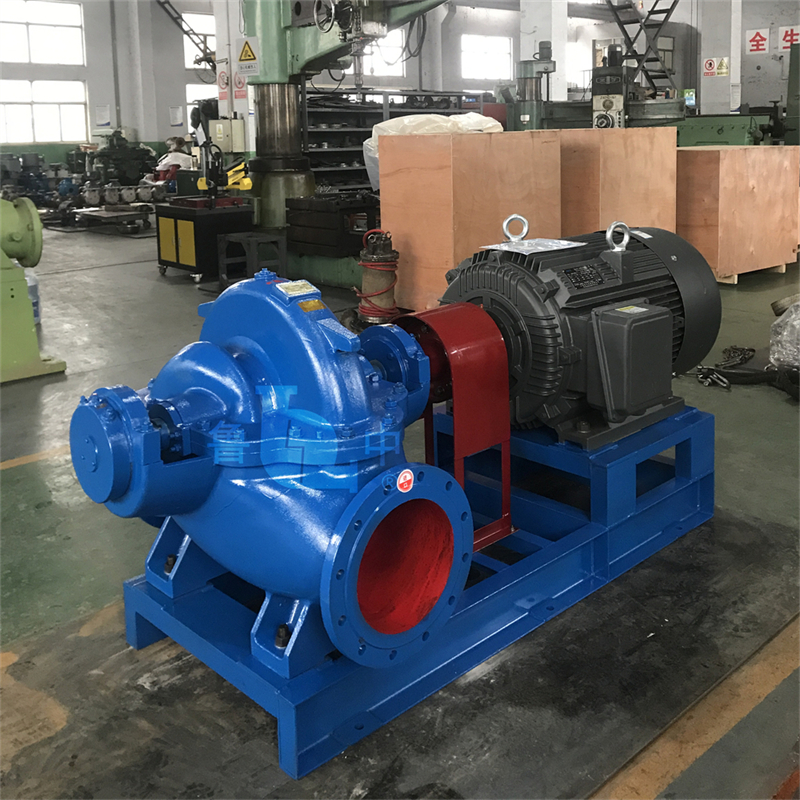

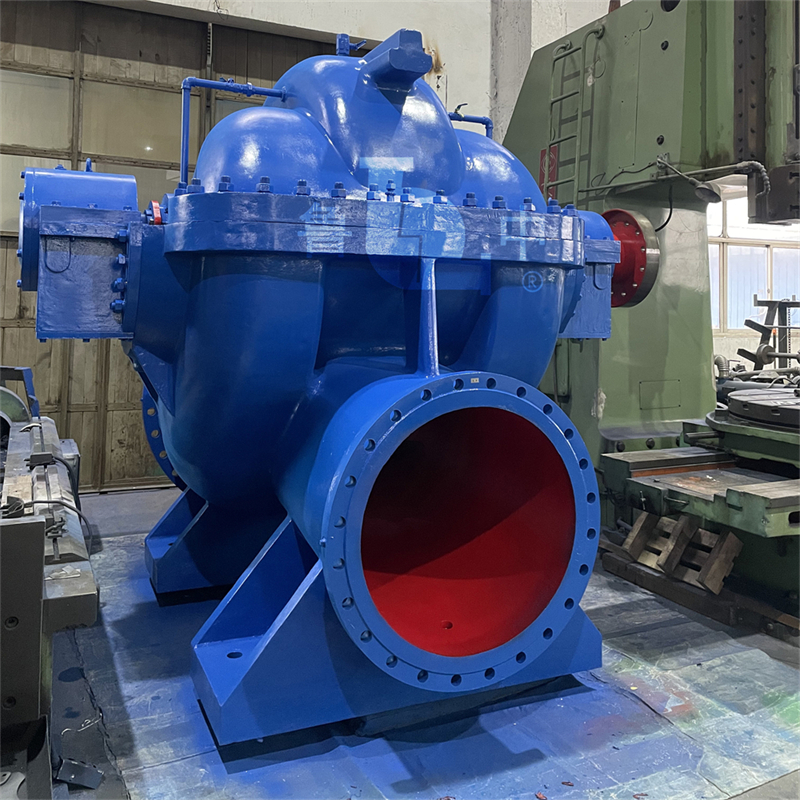

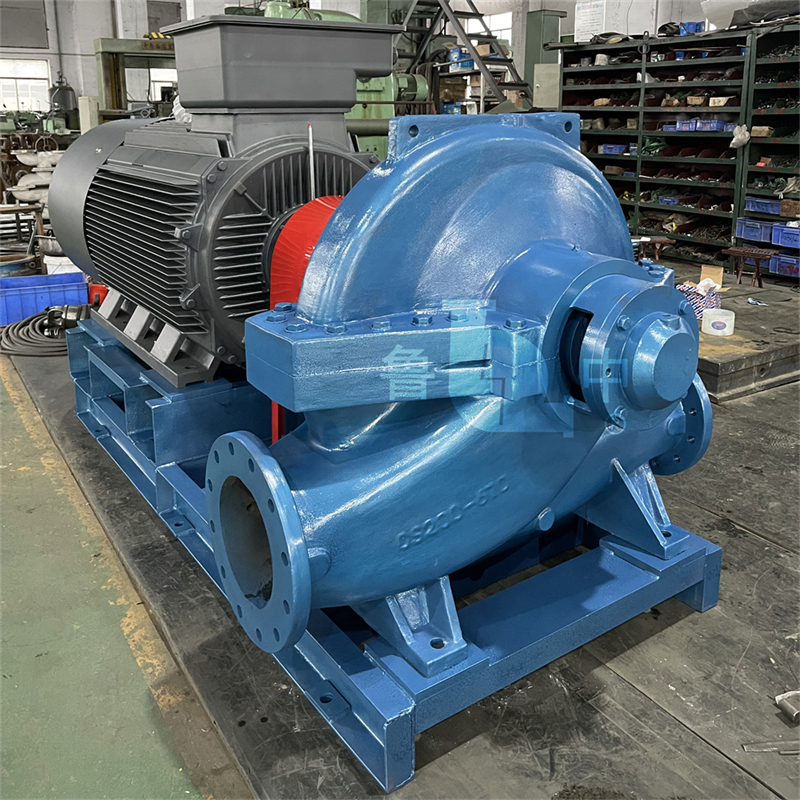

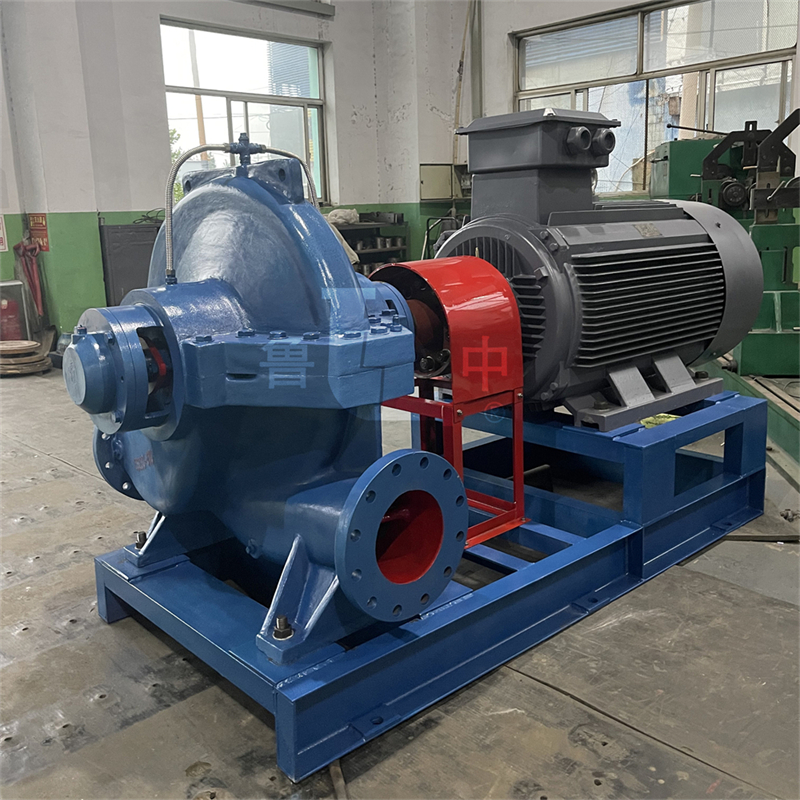

This series consists of single-stage, double-suction, horizontally split centrifugal pumps, suitable for conveying clean water and non-corrosive (or weakly corrosive) liquids. The maximum allowable temperature of the medium is 80℃, With cooling water introduced into the bearing bodies at both ends, these pumps can transport hot water up to 130°C. By changing the materials of the sealing ring, shaft sleeve, and impeller, the pump can transport muddy water containing sand. Changing the material of the pump body and pump cover can increase the inlet pressure, making it suitable for closed-loop systems such as air conditioning and heating. Copper impellers and copper seal rings are for transporting oil products.
The pump's shaft seal can be either a soft packing seal or a mechanical seal. From the motor direction, the inlet of the SH pump is on the left side (counterclockwise rotation); while the inlet of the S pump is on the right side (clockwise rotation). The rotation direction can be customized.
